Tintri EC6050 All-flash Array
All-Flash storage that maximizes performance for applications and the people who manage them

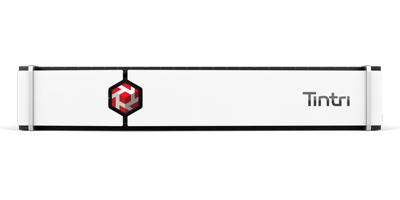

Tintri EC6050

Tintri EC6050 All-flash Array
USA: FREE Ground ShippingTintri EC6050
Contact us for pricing!



The Tintri EC6000™ All-Flash Series delivers powerful and efficient all-flash performance for up to 7,500 virtualized applications in just two rack units. Flexible expansion with FlexDrive gives you the power to balance performance and capacity one drive at a time. The unique Tintri storage file system, built specifically for virtualized and cloud workloads controls each application automatically and helps you match capacity to business needs one drive at a time. With the EC6000, you can start with a 19 TB all-flash system and grow to over 40 PB of all-flash storage supporting over 480,000 applications all managed by a single console. The Tintri EC6000 series delivers completely autonomous operation, real-time and predictive analytics, and powerful automation at the application level of abstraction to build and run virtualized enterprise applications.

Highlights of Tintri All-Flash Array:

Isolate applications

Isolate your applications

The Tintri All-Flash Array automatically assigns each application its own lane. Manually set per-application quality of service by just dragging and dropping. It's never been easier to manage your applications.

Get more done with automation

The Tintri All-Flash Array offers a set of REST APIs, as well as a PowerShell Toolkit and Python SDK. That lets you automate provisioning processes, policy applications and more. No more bottlenecks for you.


Real-time analytics

Real-time analytics for each application

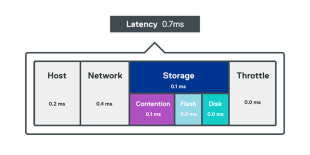

Deep dive into individual VMs, exposing latency in just one click. See across your infrastructure with real-time analytics, troubleshooting across host, network and storage. Leverage historical data to predict future performance, capacity and compute needs.


Autonomous Operation

  • Guaranteed high performance for every application without manual intervention
  • Performance isolation for every application all the time
  • Storage best practices always on and built in: inline deduplication, compression, RAID, active-standby controller with hot spares, and more
  • Concurrent multi-hypervisor support. Operate vSphere, Hyper-V, RHEV, XenServer and OpenStack on a single array simultaneously without partitioning
  • Remote management of both initial system configuration and power allows for simpler administration of your distributed environment


  • Real-time analytics. See across storage, network and hosts on a perapplication basis
  • Actionable analytics. Get to root cause in one click, fix and see results instantly
  • Predictive analytics. Profile application types, then model and forecast capacity and performance needs over the next 18 months
  • Share analytics data with vRealize Operations, Microsoft System Center Operations Manager, and other platforms


  • Tintri is easy to configure and manage; most installations take 60 minutes or less from box to production workloads
  • Our autonomous operation eliminates many manual steps. Open APIs make scripting simple, standardized and powerful
  • Use Tintri’s native REST APIs, PowerShell toolkit, Python SDK, or plugins such as our vRealize Orchestrator plugin
  • Per-application data management. Manage snapshots, clones, replication and QoS policies on a per-VM level


    Tintri EC6090 Tintri EC6070 Tintri EC6050 Tintri EC6030
64 nodes   1-64 Tintri Storage Systems
Flash Effective capacity up tobde 41.3 PB / 36.7 PiB 20.6 PB / 18.3 PiB 20.6 PB / 18.3 PiB 5.2 PB / 4.6 PiB
Flash raw capacitye 11.8 PB / 10.7 PiB 5.9 PB / 5.2 PiB 5.9 PB / 5.2 PiB 1.5 PB / 1.3 PiB
Data protected as DP/DR targetbc e 82.6 PB / 73.4 PiB 41.2 PB / 36.6 PiB 41.2 PB / 36.6 PiB 10.4 PB / 9.2 PiB
Application Density VMs (max) 480,000 320,000 160,000 320,000
Flash Effective capacity up tobd 77 – 645 TB /
70 – 586 TiB
38 – 322 TB /
35 – 293 TiB
38 – 322 TB /
35 – 293 TiB
19 – 81 TB /
17 – 73 TiB
Flash raw capacity 25 – 184 TB /
22 – 167 TiB
12 – 92 TB /
11 – 83 TiB
12 – 92 TB /
11 – 83 TiB
6 – 23 TB /
5.6 – 21 TiB
Data protected as DP/DR targetbc 154 – 1290 TB /
140 – 1171 TiB
77 – 645 TB /
70 – 586 TiB
77 – 645 TB /
70 – 586 TiB
38 – 161 TB /
34 – 146 TiB
Application Density VMs (max) 7,500 5,000 2,500 750
VDisks (max) 15,000 15,000 7,500 2,500
Onboard Network ports per controller DATA ports 2x 10GbE 2x 10GbE 2x 10GbE 2x 10GbE
ADMIN ports 2x 1GbE 2x 1GbE 2x 1GbE 2x 1GbE
REPL ports 2x 1/10GbE 2x 1/10GbE 2x 1/10GbE 2x 1/10GbE
Optional Network ports per controller DATA ports 2x 40GbE
or 4x 10GbE
2x 40GbE
or 4x 10GbE
2x 40GbE
or 4x 10GbE
2x 40GbE
or 4x 10GbE
REPL ports 2x 40GbE
or 4x 10GbE
or 2x 1/10GbE
2x 40GbE
or 4x 10GbE
or 2x 1/10GbE
2x 40GbE
or 4x 10GbE
or 2x 1/10GbE
2x 40GbE
or 4x 10GbE
or 2x 1/10GbE
Physical Specifications Dimensions (HxWxD) 2U, 3.5” x 19.0” x34.63” (89 mm x 483 mm x 880 mm) without bezel
Weight 13x SSDs 72.8 lbs (33.0 kg) 72.5 lbs (32.9 kg) 72.1 lbs (32.7 kg) 69.2 lbs (31.4 kg)
Weight 24x SSDs 74.5 lbs (33.8 kg) 74.2 lbs (33.7 kg) 73.8 lbs (33.5 kg) 70.9 lbs (32.2 kg)
Power supplies Dual redundant hot swappable with a choice of NEMA or IEC plug types
Watts (avg./max) 650 / 1100 550 / 1100 464 / 1100 433 / 1100
BTUs (avg./max) 2218 / 3412 1877 / 3412 1583 / 3412 1477 / 3412
Operating temp. 5°C to 40°C (41°F to 104°F)
Non-oper. Temp. -40°C to 70°C (-40°F to 158°F)
Operating humidity 8% to 90% (non-condensing)
Non-oper. Humidity 5% to 95% (non-condensing)
System Type All-flash Dual controller (active-standby)
Software Tintri OS Requires Tintri OS 4.3.3.x or higher
Virtualization Protocol Support NFS and SMB3
Additional Software Management Tintri Global Center™ Standard (included)
Analytics Tintri Analytics (included in active Tintri maintenance contract)
Tintri Software Suite Synchronous and Aysnchronous Replication: Tintri ReplicateVM™
Public Cloud Connector: Tintri Cloud Connector™
VM Scale-out: Tintri Global Center™ Advanced
Copy Data Management: Tintri SyncVM™
Data-at-rest Encryption: Tintri SecureVM™
Product Support Administration Tintri Global Center, web interface (https), KVM (console), SMTP and SNMP for alerts
Support Proactive support with automated phone home and case creation
Regulatory UL/CSA/EN/IEC 60950-1, EMC Emissions Class A, FCC, IC, CE, VCCI, RCM, BSMI, EAC, KC, ROHS, REACH, WEEE

a Tintri Scale-out lets you simply manage storage as a federated pool, heterogeneously accommodating hybrid/all-flash and both existing and future systems. Start with one 19 TB all-flash array, and grow up to 40 PB and 480,000 virtual machines.
b Effective capacity is calculated after data protection (double parity RAID-6, spare, and metadata overhead) and data reduction including inline deduplication and compression but does not include thin provisioning. Data reduction typically provides 3-5x capacity savings.
c Assumes minimum policy of 8 hourly snapshots, 7 daily snapshots, and 4 weekly snapshots. All snapshots are logically represented as full recoveries.
d 1 TB = 1,000,000,000,000 bytes. 1 PB = 1,000,000,000,000,000 bytes=1000 TB. 1 TiB equals 240 bytes or 1,099,511,627,776 bytes. 1 PiB = 250 bytes = 1,125,899,906,842,624 bytes = 1,024 TiB.
e Maximum capacity assumes a homogeneous pool of 64 nodes of each EC6000 series all-flash system at maximum capacity. Scale-out storage pools can be heterogeneous, using a combination of hybrid, all-flash, or a mixture of systems up to 64 nodes.


Download the Tintri EC6000 All-flash Series Datasheet (PDF).
